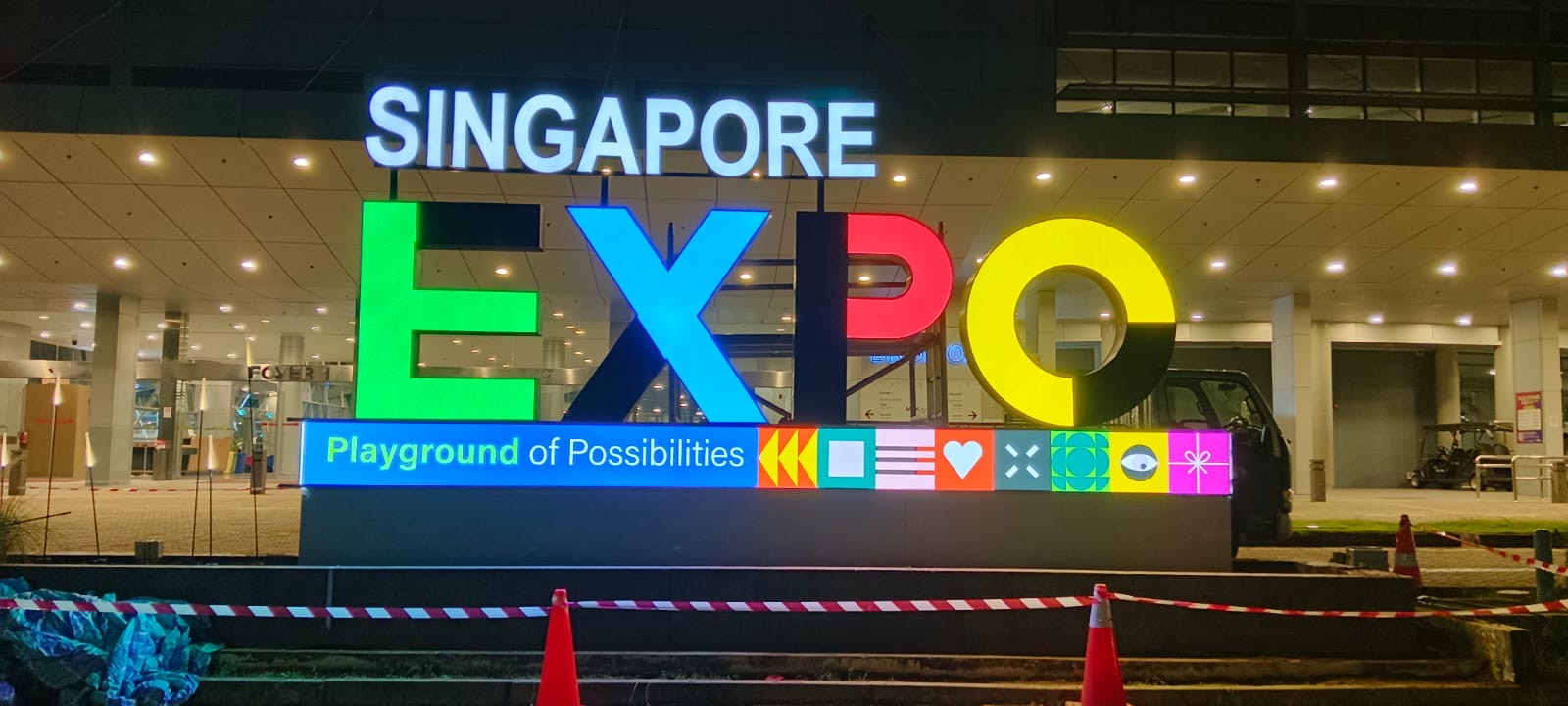

Our project at EXPO Singapore showcases the successful installation of 3 sets of 3D front-lit signage. Designed to enhance visibility and brand presence, these signage structures are firmly anchored using reinforced concrete footings to ensure stability and longevity.
The installation involved strategically positioning at key locations within the EXPO Singapore premises, surrounding its main entrances. These signage structures are crafted from high-quality materials to withstand outdoor elements while offering optimal illumination for both day and night visibility.
For structural integrity, we employed reinforced concrete footing as the foundation for the signage. The design and installation process considered several factors:
Load-Bearing Capacity: The signage dimensions and weight were carefully analyzed to determine the appropriate depth and width of the concrete footing. We have an in-house Professional Engineer to advise and endorse on stable structural supports.
Soil and Ground Assessment: A thorough site evaluation was conducted to assess the soil composition and ensure proper anchoring.
Reinforcement Strategy: Steel rebar was incorporated within the concrete footing to enhance durability and resistance to external forces such as wind and vibrations.
Installation Process
1. Site Preparation: The designated areas were marked, and excavation was carried out to the required depth. The depth of every set of signage is different, given its design and overall size; the bigger and taller the signage is it requires a deeper and bigger depth and base for structural support.
2. Formwork and Reinforcement: Concrete forms were set up, and steel reinforcement bars were placed within the mold or soil to strengthen the footing.
3. Concrete Pouring: High-strength concrete was poured into the formwork, ensuring a firm and level foundation.
4. Curing Period: The concrete was allowed to cure properly, ensuring maximum strength before mounting the signage structures. This includes well planning, labour and time in addition to just installing the logo or letter signage.

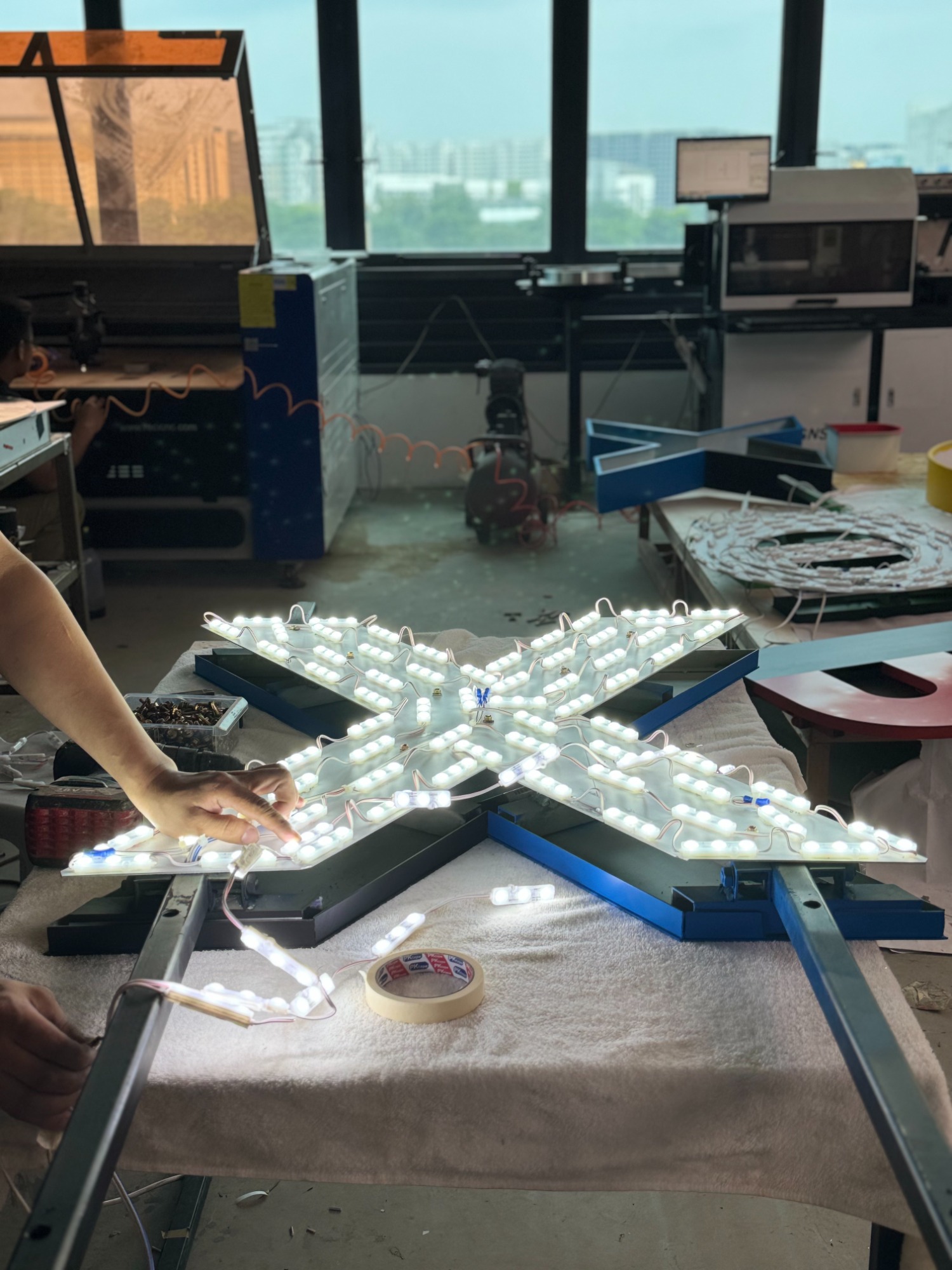

5. Signage Installation: The 3D signage units were securely affixed onto the customised aluminium base and concrete footing, followed by electrical wiring for front-lit illumination.
Key Benefits of This Installation
Enhanced Visibility: The front-lit design ensures clear readability even in low-light conditions.
Structural Stability: Reinforced concrete footing provides a strong and permanent base for the signage, with no concern of strong wind or collapse of signage overtime.
Weather Resistance: The materials used for this outdoor signage ensure longevity despite exposure to varying environmental conditions, like harsh sun and downpour.
Aesthetic Appeal: The 3D illuminated signage adds a modern and professional touch to the EXPO Singapore venue.
These 3 sets of outdoor signage are located at 1 Expo Dr, Singapore 4861503.
Singapore Expo is the largest convention and exhibition venue in Singapore with over 100,000 square metres of column-free, indoor space spread over 10 halls. The center is funded by the Ministry of Trade and Industry.
